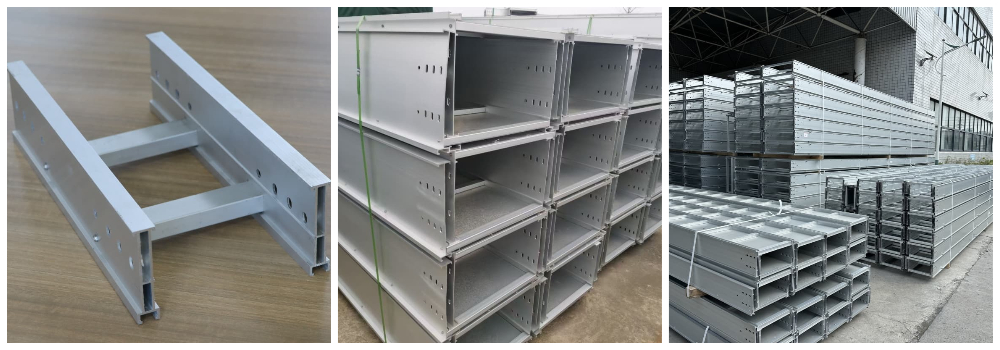

Wholesale Aluminum Profile Cable Trays

Introduction of the product：

Aluminum profile cable trays are widely used, mainly reflected in the following aspects:

1. Industrial environment: such as chemical plants, pharmaceutical factories, etc., due to their good corrosion resistance, are suitable for environments with a high concentration of chemicals, reducing pollution risks.

2. Construction engineering: In commercial buildings such as large shopping centers, office buildings, and residential communities, it is used to carry and manage cables, which is both beautiful and practical.

3. Power facilities: such as substations, power plants, and aluminum alloy cable trays, their high temperature resistance and corrosion resistance make them an ideal choice to ensure the safety and stability of the power distribution system.

4. Transportation: Provide efficient solutions for cable management in places such as subways, railways, and airports to ensure safe and stable operation.

5. Outdoor facilities: such as communication base stations, outdoor power equipment, aluminum alloy cable trays can withstand various weather conditions and provide stable cable support.

Production process：

Application:

Aluminum profile cable trays are extensively used in cable wiring in industrial plants. Due to their lightweight, corrosion resistance, and excessive reliability, they can meet the necessities of wire routing structures in industrial manufacturing environments, whilst additionally facilitating protection and replacement. Aluminum profile cable trays are extensively used in cable tray structures in business buildings, which includes facts centers, workplace buildings, schools, etc. Its benefits of mild weight, beauty, lengthy lifespan, and secure use have earned it full-size recognition.
In massive sports activities venues, aluminum profile cable trays can meet the wishes of low price and rapid installation, imparting sturdy aid for lighting, records transmission, etc.

Aluminum profile cable trays have become a cornerstone of modern cable management systems, especially in industrial, commercial, and infrastructure projects. With a combination of durability, corrosion resistance, and lightweight structure, aluminum cable trays are ideal for organizing and protecting electrical wiring in a scalable and efficient way. For wholesalers and contractors, understanding the structural, material, and regulatory specifications of aluminum cable trays is essential when making bulk purchases.

This article explores the technical aspects of wholesale aluminum profile cable trays, covering key specifications, manufacturing materials, industry standards, installation considerations, and compliance requirements.

1. What Are Aluminum Profile Cable Trays?

Aluminum profile cable trays are structural systems designed to support, route, and protect electrical cables and wires. They are often manufactured using extruded 6063 or 6061 aluminum alloy profiles, offering a balance of strength, corrosion resistance, and thermal performance. These trays come in a variety of designs, including:

• Ladder Type

• Solid Bottom

• Perforated Type

• Trough Type

• Wire Mesh (Basket Style)

Each type serves different cable routing and ventilation requirements.

2. Why Choose Aluminum for Cable Tray Systems?

2.1 Material Properties

• Weight: ~1/3 the weight of steel trays, reducing structural load and installation effort.

• Corrosion Resistance: Naturally resistant to atmospheric and chemical corrosion.

• Electrical Conductivity: Aluminum can act as a grounding path if designed per IEC 61537 or NEC Article 392.

• Thermal Expansion: Coefficient of expansion is 23.1 µm/m·K, requiring thermal gap planning during installation.

2.2 Common Alloys and Standards

3. Engineering Specifications for Wholesale Applications

3.1 Load Capacity

• Span vs Load: Confirm maximum uniform load at a given span. For instance, a 300 mm wide ladder tray (2.0 mm thickness) typically supports up to 100 kg/m at a 2.5 m span.

• Deflection Criteria: Should not exceed L/100 per NEMA VE 1 or IEC 61537.

3.2 Dimensions and Profile Types

• Standard widths: 100 mm to 900 mm

• Standard heights: 25 mm to 150 mm

• Thickness: 1.5 mm to 3.0 mm depending on application

• Profile options: C-shaped, U-channel, T-slot aluminum for modular integration

3.3 Surface Finish Options

• Mill finish

• Anodized (clear or colored)

• Powder coated (if aesthetics or environmental exposure require)

4. Installation Guidelines and Regulatory Compliance

4.1 Codes and Standards

• IEC 61537 – Requirements for cable tray systems

• NEMA VE 1 & VE 2 – American cable tray design and installation

• NEC Article 392 – U.S. National Electric Code for cable trays

• CSA C22.2 No. 126.1 – Canadian standards for metal cable trays

4.2 Grounding and Bonding

If the tray is used as an equipment grounding conductor (EGC), bonding jumpers are required at tray joints unless a continuous aluminum profile is proven to meet resistance limits (≤ 0.1 ohms across joints).

4.3 Environmental Considerations

Aluminum trays are suitable for:

• Indoor & outdoor use

• Coastal and humid regions

• Chemical processing plants (with anodized coating)

• Data centers with EMI-sensitive equipment (with shielding modifications)

5. Key Considerations When Purchasing Wholesale

5.1 Sourcing and Quantity Planning

• Minimum Order Quantities (MOQ): Typically start at 100 meters or 500 kg depending on manufacturer

• Customization Options: Tray length (usually 2.5 m or 3.0 m per piece), hole pattern, finish, connection accessories

• Logistics: Bulk shipments often require full-container load (FCL) planning and stackable packaging design

5.2 Cost Factors

• Raw aluminum prices (average ~$2,200/ton in 2025)

• Anodizing and finishing costs

• Accessory pricing (brackets, splices, fasteners)

• Shipping (FOB vs CIF)

6. Common Use Cases

• Industrial Factories: Supporting high-voltage cables for machinery

• Commercial Buildings: Routing network and control wiring

• Infrastructure Projects: Tunnel and bridge installations due to corrosion resistance

• Solar Farms: Carrying solar panel connections in corrosive, outdoor environments

7. Frequently Asked Questions (FAQs)

Q1: Are aluminum trays stronger than steel trays?
A: No, aluminum trays are generally lighter and less strong than galvanized or stainless steel trays. However, their corrosion resistance and ease of installation make them ideal for many applications.

Q2: Can aluminum cable trays be used in explosive environments?
A: Yes, if designed with proper grounding and in compliance with ATEX directives or NEC Class I, Division 1 requirements, they can be used in hazardous areas.

Q3: How do I determine the correct tray size?
A: Consider cable fill capacity (usually ≤ 40% of tray cross-section), cable weight, and routing layout. Use sizing tables provided in IEC 61537 or NEMA VE 1 for accurate selection.

Q4: Do aluminum trays require maintenance?
A: Minimal maintenance is required; periodic inspections for corrosion, grounding continuity, and mechanical damage are recommended.

Conclusion and Call to Action

Wholesale aluminum profile cable trays provide a scalable, lightweight, and corrosion-resistant solution for modern cable management systems. With compliance to international standards like IEC 61537 and NEMA VE 1, they are a dependable choice for contractors, distributors, and infrastructure developers.

If you're planning a large-scale project or managing bulk procurement, ensure your specifications align with engineering standards and regional electrical codes.
We offer expert consultation and customization services for aluminum profile cable trays tailored to your project’s needs.

Get in touch today to request a quote, technical drawings, or sample specification documents tailored to your upcoming installation.
